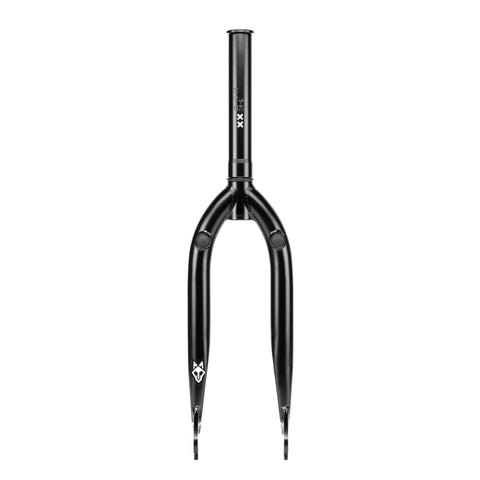

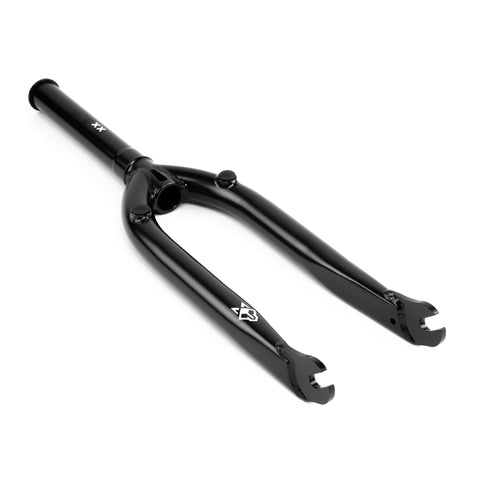

Coyote Fork

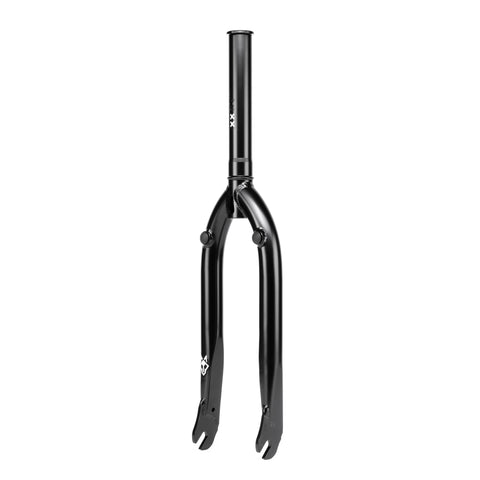

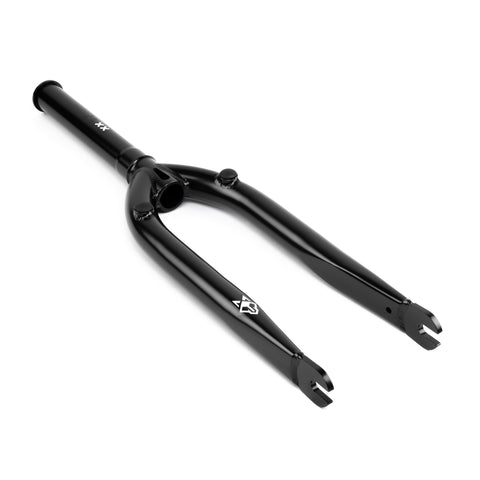

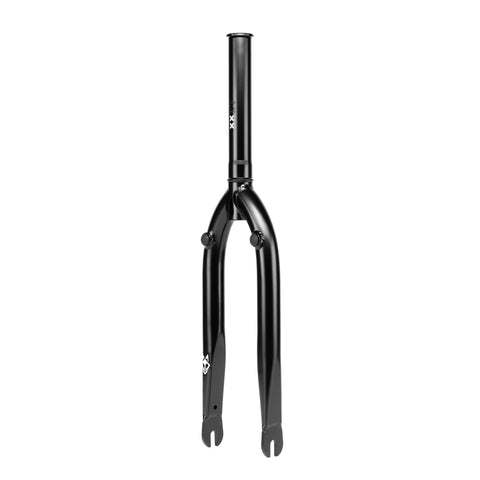

The COYOTE TEN fork is a lightweight flatland fork with 0mm abd 10mm offset options, based on the construction and heat treatment of the STORM fork. Designed around 1.75"–1.95" flatland tires, it saves weight where it is not needed while staying stiff and dependable. It is available with removable brake pivots or brakeless and is backed by a lifetime guarantee.

Material:
• full liquid post heat-treated seamless 4130 crmo
• fully cnc'd steerer and butted fork blades
• integrated crown race
• mechanically formed fork leg
• designed for integrated 45° headsets

Features:

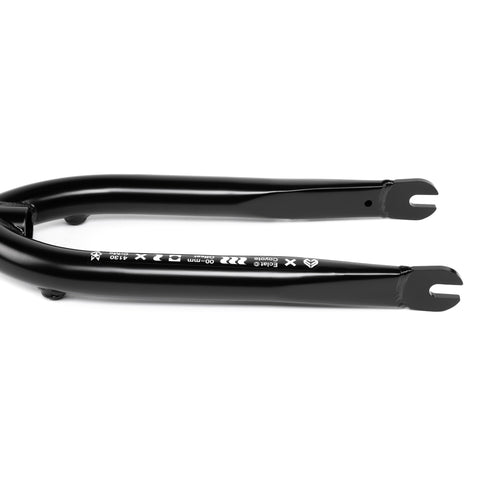

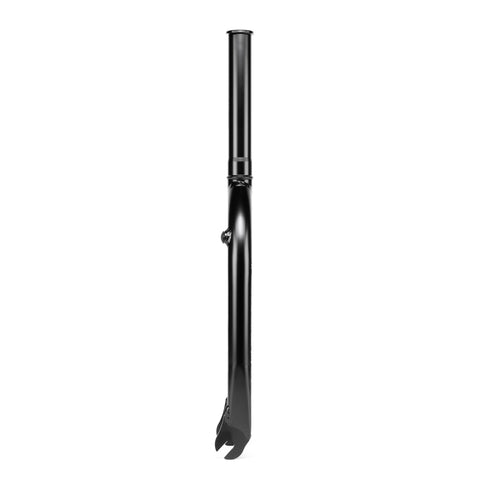

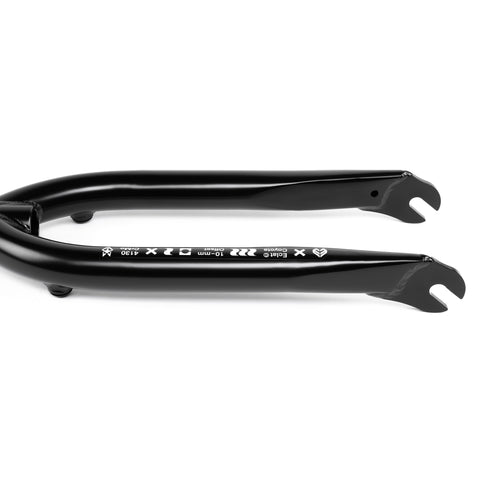

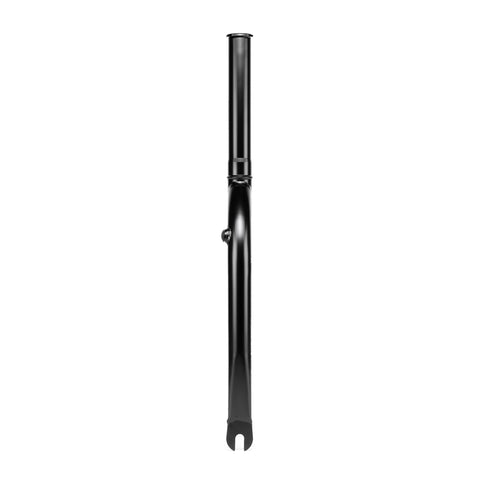

• lightweight flatland fork with 0mm and 10mm offset options

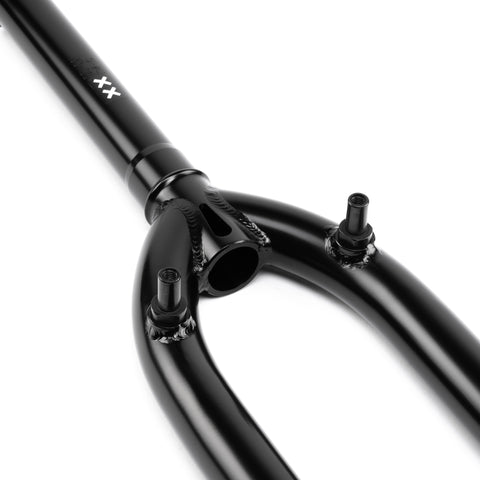

• available with removable brake pivots or brakeless
• designed for 1.75"–1.95" flatland tires, fits 2.0" max
• slimmed down fork legs with long taper for peg clearance, lifetime guarantee

Steerer Length:
170mm, for M24 top bolt, cnc cutout on back side

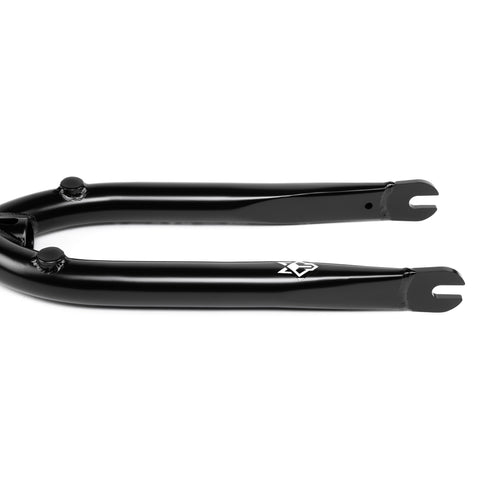

Dropouts:
• cnc machined laser cut 5mm thick dropout
• heat-treated 4130 crmo, 3/8"" (10mm)

Topbolt:
• M24 thread, 6061-T6 alloy
• includes recess for front brake cable

Colors:
Black

Weight:
860g (30.3oz : 1.89lbs)

LIFETIME GUARANTEE
